xMac Pro Server

New

PCIe 2.0 expansion system/4U rackmount enclosure for Mac Pro with Thunderbolt 2 ports. Integrated 300W power supply and auxiliary power connector for installed cards.

Category: Expansion TB2

Description
Technical Specifications

xMac Pro Server with Modules Expand & Secure Your Mac Pro

Building on the concept of our award-winning xMac mini Server for Mac^® mini, we designed an expansion system that safely encloses the latest Mac Pro^® into a tightly integrated 16″ deep rackmount enclosure, incorporates PCIe card expansion with three PCIe 2.0 slots and 20Gbps Thunderbolt™ 2 technology, and provides the capability to add peripherals with optional Mobile Rack Device Mounting Kits.

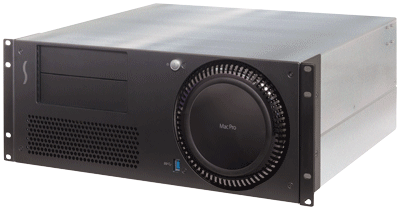

xMac Pro Server Modules Location Animation

A.Mobile Rack Device Mounting Kit (optional)
B.PCIe Card Expansion Module (included)
C.Computer Mounting Module (included)

The new Mac Pro is an object of desire, but a lustrous finish hides its true beauty within—massive power. If you’re a pro user in the video or audio industries, the Mac Pro offers the power you need, but lacks the built-in expandability you count on. In order to achieve this engineering feat, Apple^® designers stripped away components and space to a minimum, taking out PCIe slots and drive bays, and packed the remaining components into a small cylinder. Its compact size makes the new Mac Pro more transportable and rackable, but prevents onboard installation of PCIe expansion cards. In addition, the computer still requires an enclosure to make it road- or rack-ready and provide convenient cable management.

Sonnet’s xMac™ Pro Server PCIe 2.0 expansion system/4U rackmount enclosure addresses these issues and increases a Mac Pro’s potential in a big way. With amazing expansion capabilities, an easy to maintain modular design, and support for a wide range of popular mobile racks, carts and portable rack cases, xMac Pro Server is the perfect solution for expanding the power of your Mac Pro.

Learn More About xMac Pro Server At Work

Mac Pro Icon Designed for the Mac Pro

xMac Pro Server houses the computer, a PCIe cards expansion module, and optional mobile rack kit equipment in a modular, rugged 4U steel enclosure.
Learn More

Thunderbolt Logo Icon Features Thunderbolt 2 Technology

20Gbps Thunderbolt 2 Technology and optical or copper Thunderbolt cables ensure maximum performance.
Learn More

PCIe Card Icon Broad PCIe Card Support

The PCIe Card Expansion Module supports three
high-performance PCIe cards, including AVID^® Pro
Tools | HDX.
Learn More

Pro Series 5-Year Warranty Icon Five Year Warranty Included

There’s no need to pay an additional 10–20% on top of the purchase price for an extended warranty beyond one year—Sonnet backs xMac Pro Server with our pro 5-year warranty.

Main Key Features

Provides PCIe Card Expansion for Mac Pro—Use high-performance PCIe cards with the latest Mac Pro

Makes Your Mac Pro Road-Ready—4U rackmount enclosure securely holds the computer and PCIe cards in place, adding mobility to your Mac

Three PCIe Slots—Supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card

Thunderbolt 2 Interface—Maximum performance with Mac Pro; backward compatible with devices equipped with 10Gbps Thunderbolt technology

Upgradeable—When available, upgrade to 40Gbps Thunderbolt 3 Technology with a replacement Thunderbolt interface card

Power for High Performance PCIe Cards—Integrated 300W power supply provides plenty of power for any cards you install; 75W auxiliary PCIe power connector enables use of power hungry cards such as the Avid Pro Tools|HDX or the RED ROCKET-X

Provides Space for Additional Devices—Using optional Mobile Rack Device Mounting Kits, you can install HDDs, SSDs, a tape or optical drive, and more inside xMac Pro Server’s enclosure

Part No. XMAC-PS xMac Pro Server(1) Hardware Warranty 5-year Dimensions (WxDxH) 19 x 16 x 7 in. (48.3 x 40.6 x 17.8 cm) Weight 32.5 lbs (14.7 kg) External Connectors Two RJ-45 Gigabit Ethernet port extensions Four USB 3.0 port extensions (one front-mounted, and three rear-mounted) One HDMI port extension One C-13 power port extension Internal Connectors One 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power) One C-13 power PCIe Expansion Slots One x8 mechanical (x8 electrical) PCIe 2.0 One x16 mechanical (x8 electrical) PCIe 2.0 One x8 mechanical (x4 electrical) PCIe 2.0 PCIe Cards Supported(1) Three full-length PCIe cards, or One full-length, double-width PCIe card, plus one single-width card Compatible PCIe Cards(2) Up-to-date PCIe cards listed on our supporting PCIe Card Thunderbolt Compatibility Chart Power Supply Universal 300W, 115-230V AC, 50-60 Hz Operating Temperature 0º C to 35º C (32º F to 95º F) RoHS Compliant Yes Package Contents xMac Pro Server (includes PCIe card expansion module; computer mounting module with one HDMI, one power, two Gigabit Ethernet, and four USB 3.0 pass-through cables; assembled) Thunderbolt cable ThunderLok Thunderbolt connector retainer clip(3) Locking HDMI cable Power cord 5/64-inch hex wrench Documentation Notes: Mac Pro, PCIe cards, Mobile Rack Device Mounting Kits, and Twin 10G sold separately. Mac Pro Wi-Fi and Bluetooth antenna shielded from effective use upon installation. Compatibility Mac Pro (Late 2013) OS X® 10.9.5+ OS X El Capitan compatible
